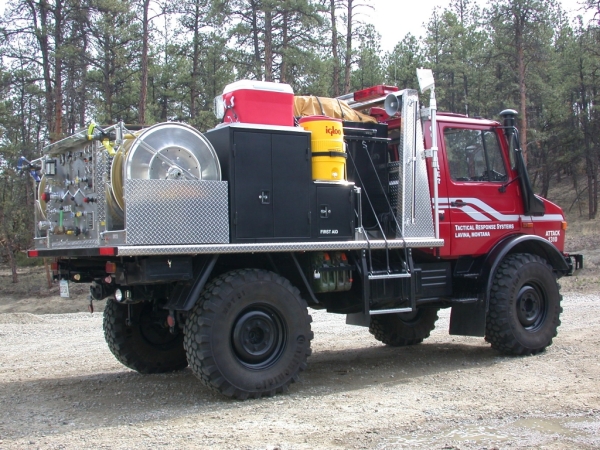

This Type 6, compressed air foam attack truck is full-featured and ready to operate. It is ideally suited for the urban-interface environment in a rural, municipal fire department, or volunteer fire department. It would also be ideal for a large ranch.
With an 18 inch ground clearance at the differentials and a tight turning radius, the Mercedes Unimog U1300L has the ability to drive over a 20 inch deadfall and keep heading towards the fire. Outfitted with 1,300 feet of hose, three 500 watt scene lights, quiet generator, mobile radio and three color-coded chest harness portables, this attack truck is ready to respond today. There is one more feature worth mentioning up front. This truck even has a hose rewinder mounted on the front bumper. If your department or ranch is interested in this truck, be assured that the signage on the cab is removable.
General Specifications:
1979 Mercedes U1300L with OM-352, 150hp with tsurbo
8 forward gears, 4 reverse gears
Front and rear stabilizer bars
18” ground clearance at the differentials
Enclosed drive shafts
Pressurized transmission, differentials and headlight chambers
Raised air intake
Fording depth to 47 inches
OPTIMA RED TOP batteries, 24 volt system
One set of shop manuals, in English

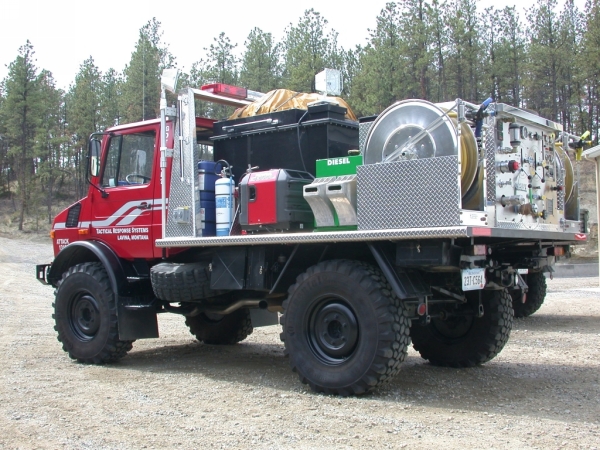

Bed:
3/16” aluminum diamond plate over the original Mercedes, ¾” marine-grade plywood. The original bed, 7 foot wide by 10 long, has been widened by 8 inches.
Headache Rack:
3/16" aluminum diamond plate, with compound-tapered, boxed-in sides. Lightbar mounted to top with external mobile radio speaker and additional space for antennas.

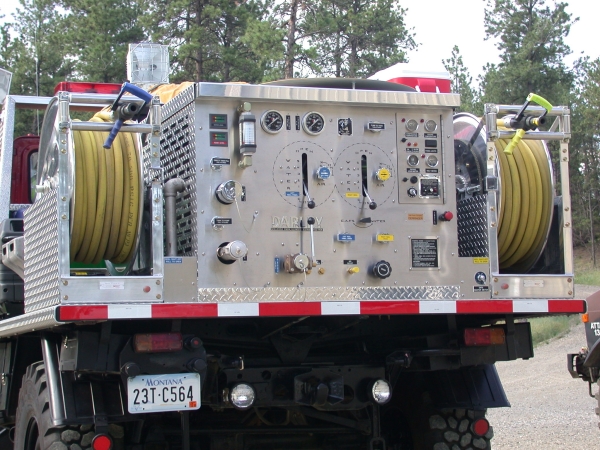

CAFS:
Standard unit adapted to custom specifications.
W. S. Darley, Odin Foam Derringer, 55 CFM, 80 GPM at 155 PSI
1 - 1/2 AGE Darley Champion Pump
Tamrotor Rotary Screw Compressor
Hypro Model 1601 Proportioner
31 HP Daihatsu diesel engine
25 Gallon diesel fuel tank mounted to the deck. The tank has slots which hold
two aluminum wheel chockss.
2 - Hanney Aluminum Booster reels, motorized, each with 200'
lengths of Niedner HOTSTOP Spec 3300 hose with ARAMID braid.
1 - CAFS unit storage battery, Exide Select Orbital, 12 volt, deck-mounted.
Tank:
350/10 poly water/foam tank, black, with hose tray on top of tank. Water and foam comprtment sight gauges. Additional on-bed storage for two 5 gallon foam pails (included). 20 gallons of on-board foam, sufficient to process 6000 gallons of water into compressed air foam @ 0.3% foam concentrate. Foam is Phos-Chex AFFF.
Hose & Nozzle Inventory:
All hose-tray stored hoses are North American's HIT-600 yellow, nitrile-covered, cpld aluminum, EX-NHT. This is a rugged, ribbed, 600psi rated hose
6 - 100' lengths of 1 1/2"
2 - 50' lengths of 1 ½"
5 -100' lengths of 1"
2 - 50' lengths of 1"
2 - 1" POK foam nozzles
1 - 1 1/2" Elkhart foam nozzle
1 - Mad Dog Foam nozzle
2 - 25' lengths of 2" hard suction hose, clear, with cam-locks, check valve and
2 ½ and Float-Dock Strainer. Various hose adapters, gated wyes, fencing
pliers, bolt cutter, first-aid, etc.
1 - 25' lengh of air hose, with air chuck, which can be connected to the CAFS
panel coupler for local, compressed air.

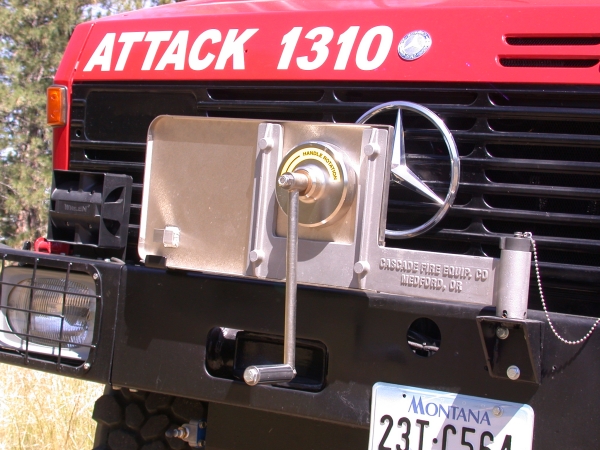

Hose Roller:
1 Cascade Fire Hose Roller, mounted to front bumper with quick-mount pivot bracket. Rolls 100' lengths of 1” to 3” hose.
Extinguishers:
1 - Amerex 270 water mist extinguisher, 2 1/2 gallon
1 - Amerex 423 ABC dry chemical extinguisher, 20lb, both mounted to truckbed on dual bracket.
Storage:
Custom-built, 14GA steel cabinet with two compartments, hinges with grease fittings.
Water Cooler:
10 Gallon Igloo, with plated, wire frame mounted on top of storage cabinet.
Ice Chest:
Rubbermaid, 48 quart, with hosed drain.

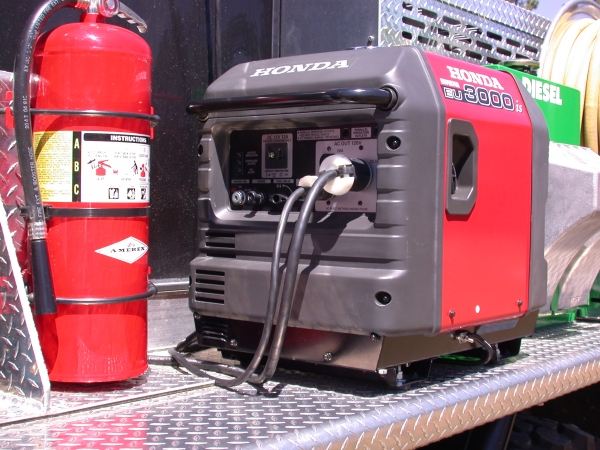

Generator:
Honda EU3000i generator (super quiet), two 20 amp receptacles, one 30 amp twist-lock receptacle.
24 volt to 12 volt:
Sure-Power 80 amp converter/equalizer, mounted to underside of passenger seat. Master disconnect switches for: Ground, 12 Volts, and 24 Volts.
Onboard Battery Chargers:
12 & 24 volt Deltran battery chargers, with officer-side, shore-power receptacle.
Fixed Scene Lighting:
2 - SAFE-T-LITE, 120 volt, 500 watt lampheads, with bottom raise poles,
hard-wired and plugged into the on-board generator.
Portable Lighting:
1 - Portable Hand Light with mounting bracket, 120 volt, 500 watt lamphead,
located on top of water tank and plugged into generator. Unit is removable
and is equiped with 80 feet of extension cord.

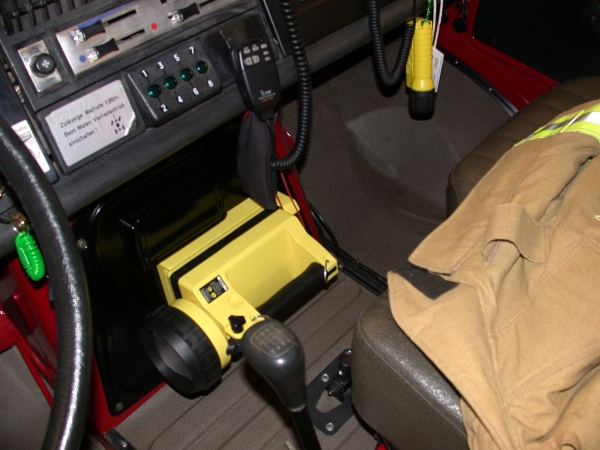

1 - Streamlight LITEBOX, with 1,400 candlepower, 20 watt flood and onboard
charger, hardwired.
1 - Streamlight FIRE VULCAN, with 65,000 candlepower, 8 watt spot and
onboard charger.
1 - Streamlight 3C LED
1 - UK C4 Sunlight
1 - Uk SL4 Sunlight

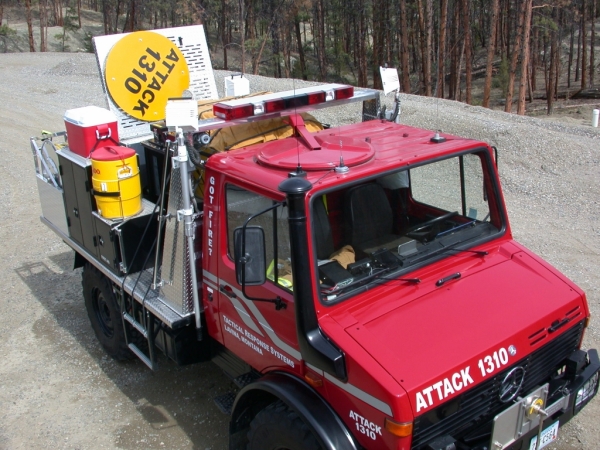

Lightbar:
Whelen, 9622, 12 head Edge series with red and white lenses, alleys, and take-downs. Take-downs face rear to light the hose tray as well as the water and foam fill hatches.
Lightbar Controller Head:
Whelen 295, full-featured, with lightbar, dual sirens and PA controls.
Computer:
IBM ThinkPad laptop, for in-cab, GPS with LCD screen with DeLorme 3-D TopoQuads, mounted on Jotto-Desk stand. With on-screen, 2-D and 3-D GPS-driven contour maps, this system offers terrain-based attack and access strategy, including range and township data.
12 Volt Accessory Sockets:
2 - 6 amp accessory sockets.
Communications:
1 - Kenwood TK-790, VHF, 110 watt mobile, 160 channel, with PA
3 - Kenwood TK-290 VHF, 5 watt portables, 160 channel, with speaker
microphones, chargers and metal-hydride batteries, and AA battery cases,
one TK-290 for CAFS panel operator, two TK-290’s for nozzle operators.
The three portables include color-coded chest harnesses to match the
color-coded pump panel hose reels. Programming cables and software for
mobile and portable radios.
Weather Instrumentation:
Kestral 4000 Pocket Weather Tracker. Full-featured, with temperature, humidity, heat index, windspeed, windchill, and more.
Compass:
1 – Suunto M2, map style compass.
Triangle Reflectors:
3, with case.
First Aid:
12 person, with burn gel and eye-wash soulution.
General Notes:
The truck is in a clean, in-service, standby mode, ready to operate and ready for delivery, or pick-up, via on site loading dock, by gooseneck trailer to any point in the United States.
Currently, the truck's overall height is 115". Removing the 500 watt lampheads would reduce the overall height to 110", at the top of the lightbar.

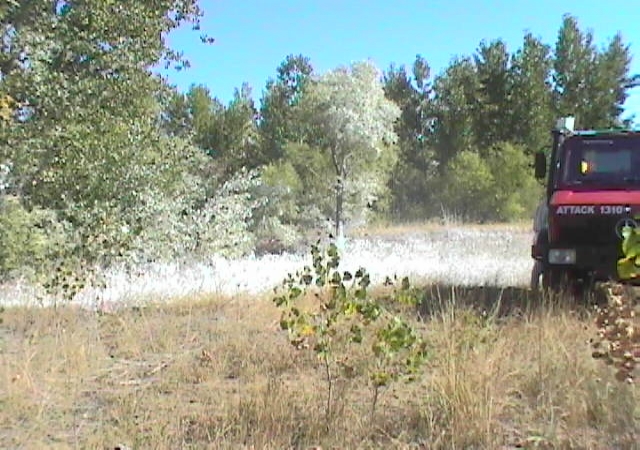

The truck has been weighed by the Montana Department of Transportation and weighs in at 16,800lbs. Documentation is on file. It is currently registered and titled in the State of Montana. It has seen little action other than a few controlled burns, controlled structure burns, and parades. The truck presents well and the CAFS unit has 17.5 hours of which 6.5 are via factory testing. Odin Foam can support their Derringer CAFS unit.
The Unimog, U1300L chassis is a former NATO military truck, with approximately 68,000 KM or 45,000 miles on the odometer.
To some extent, unwanted, onboard equipment can easily be removed to suit the buyer's needs.
Purchase will be by wired funds or certified bank check. This vehicle and any attatched equipment is being sold in an "as is, where is" condition without a warranty of any kind, expressed or implied. |
